Coffrage hélicoïdal pour réservoir à caissons
Un nouveau type de coffrage circulaire réglable pour la construction en hauteur.

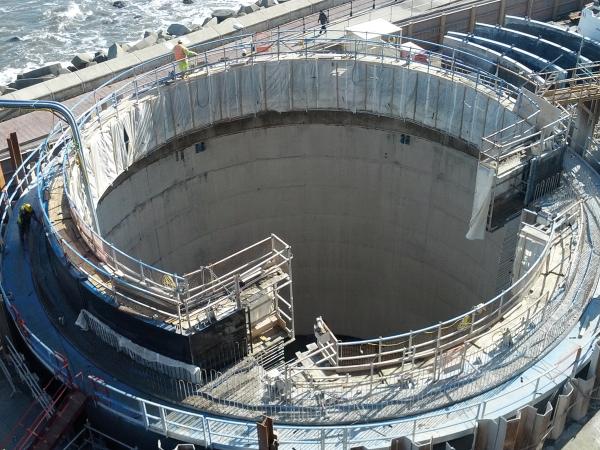

The Helix formwork is a perfect fit for large concrete tanks with diameters between 20m and 50m and a minimum height of 20m. After assembly, the formwork does not need to be dismantled and moved with a crane.

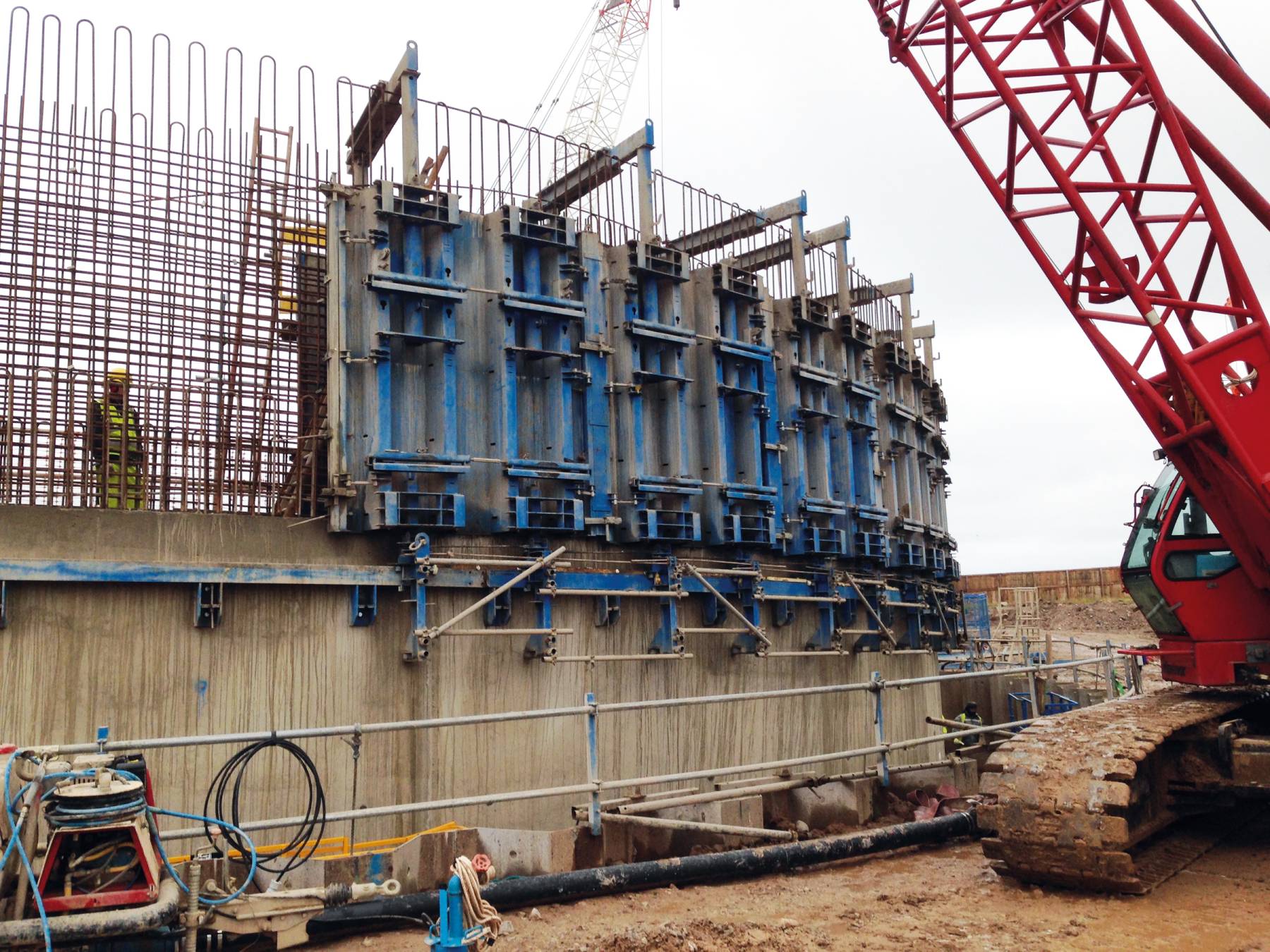

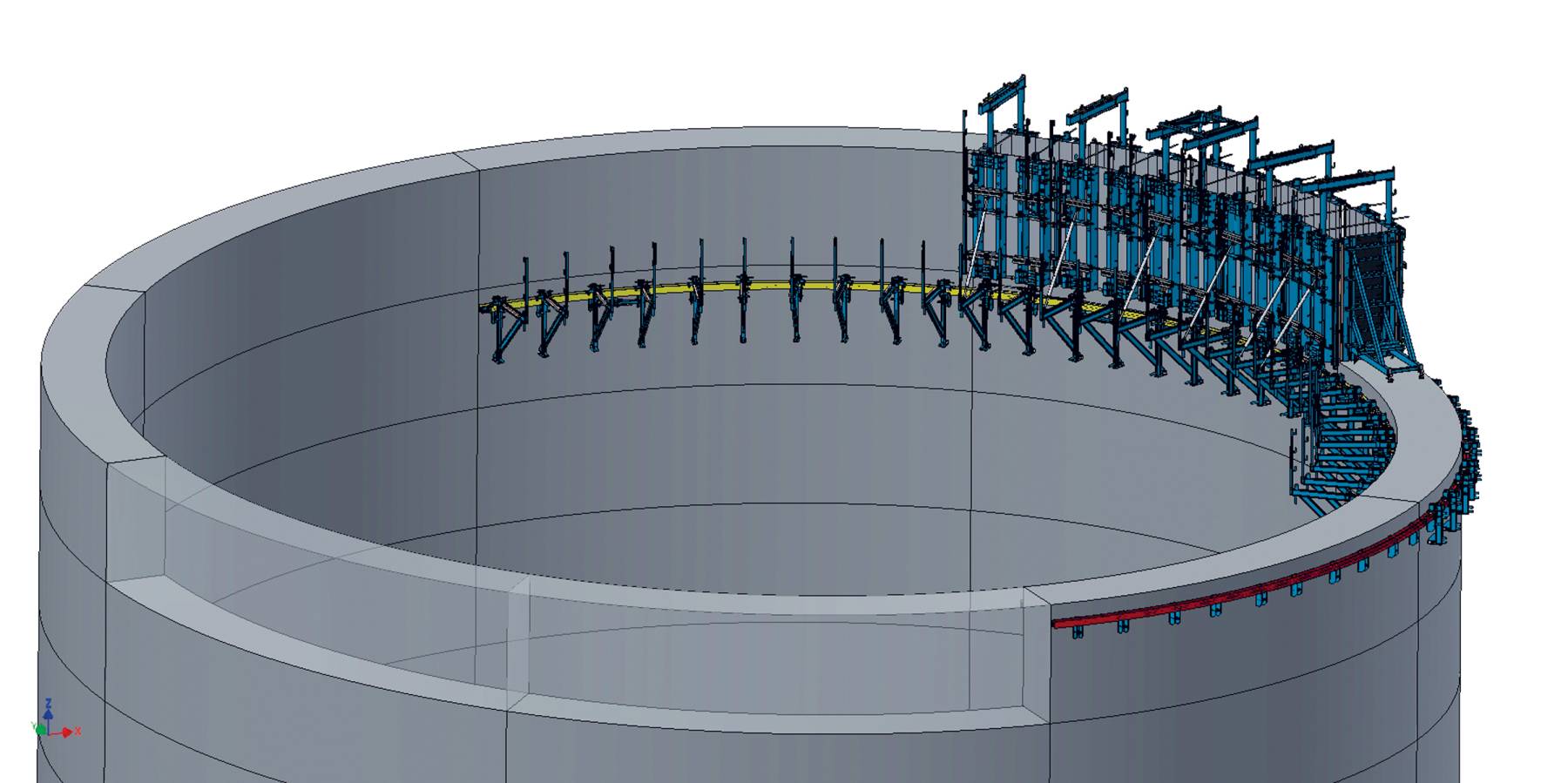

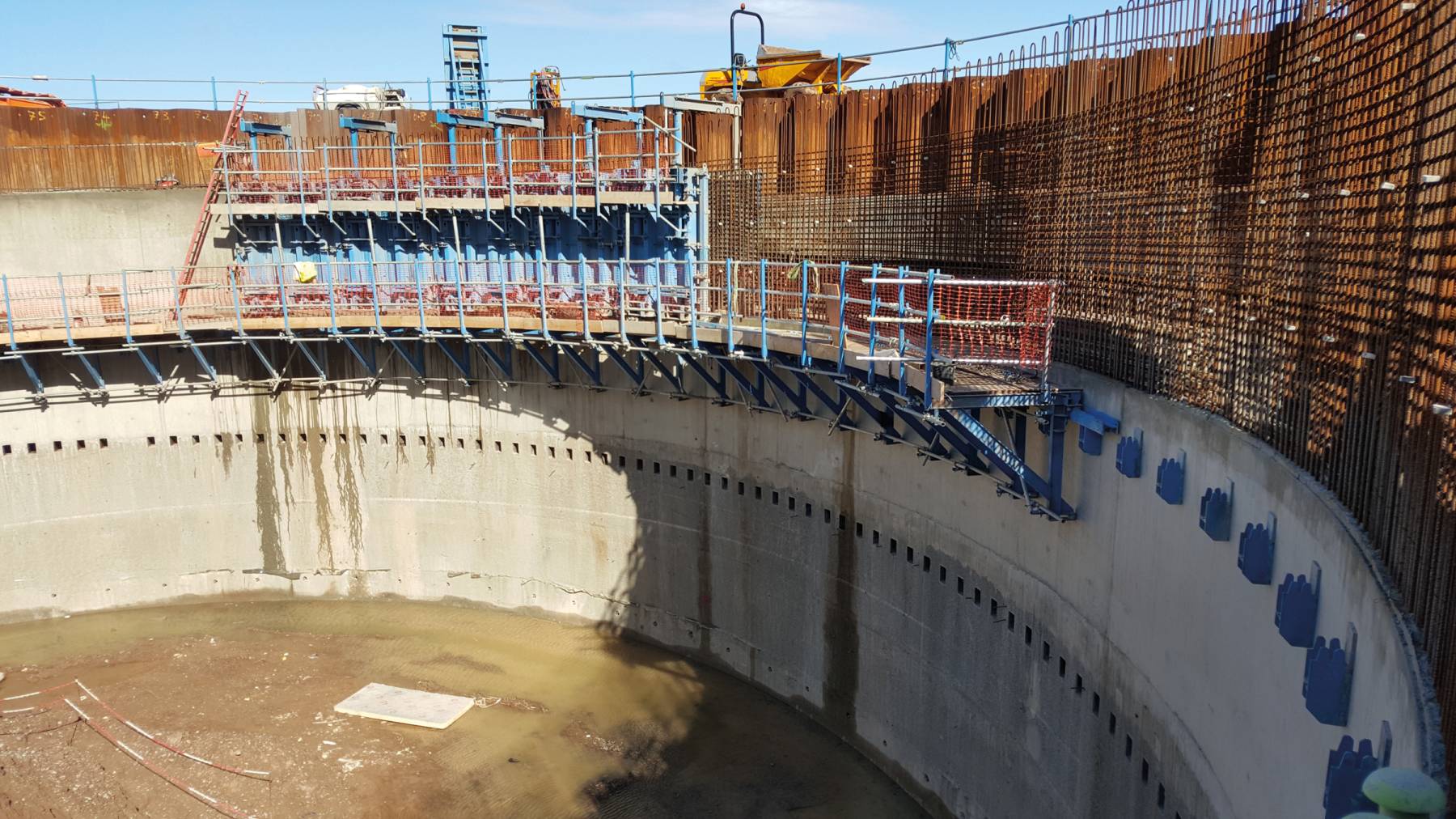

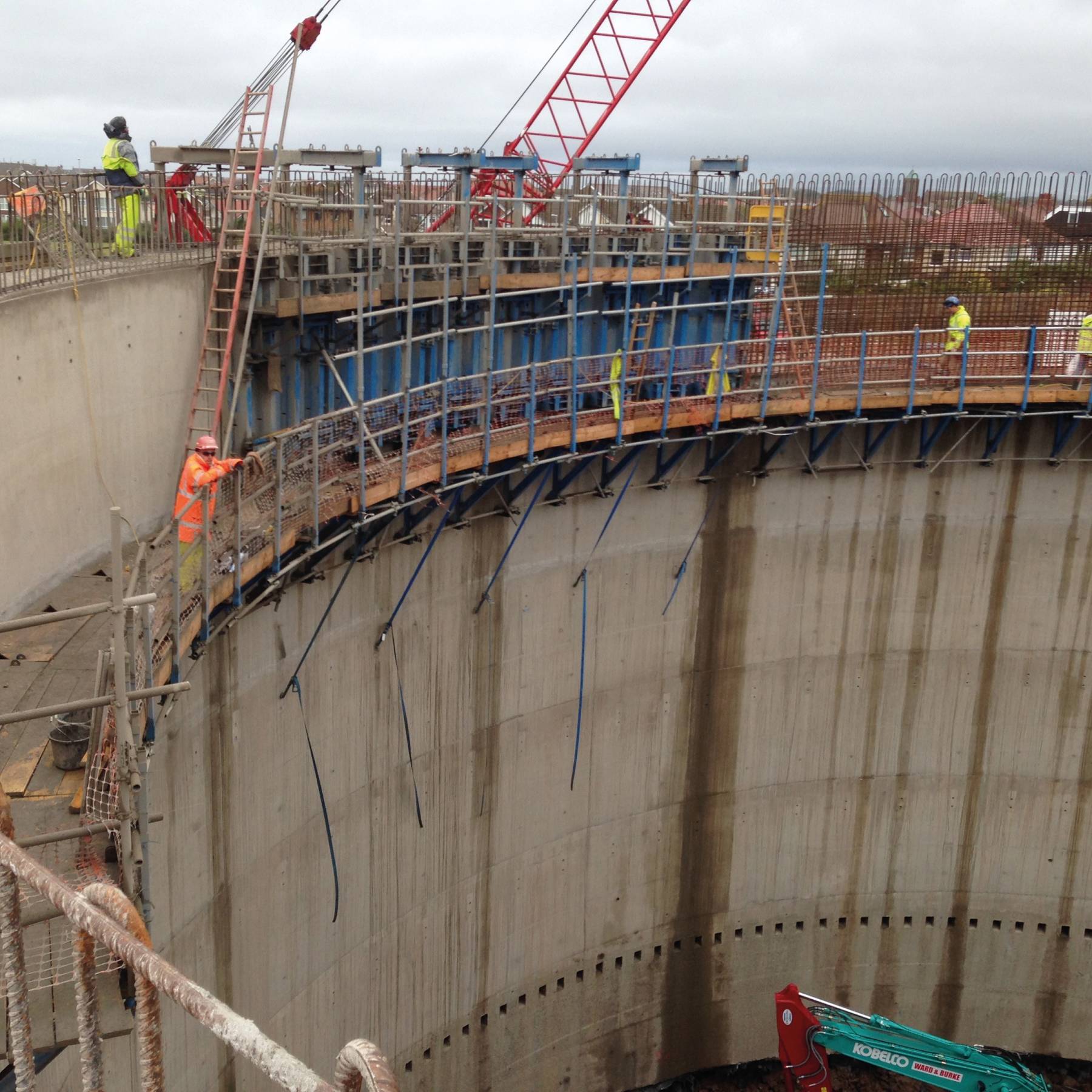

The entire setup drives upwards as in a helix, using the cured concrete wall as a support. Only the climbing shoes and the rails need to be moved with a crane. The shutters sit on the scaffolds which roll on specially twisted profiles.
Moving panels and scaffolds is done with a winch, in 1 single action which takes only about 10 minutes.
- Height 28m
- Internal diameter 30m
- Wall thickness 1500mm
- 5 internal panels 3000mm x 2400mm
- 5 external panels 3000mm x 2500mm
- 88 pouring stages of approx. 12,5m
- Slope approx. 3%: rise 2,9m per circle
